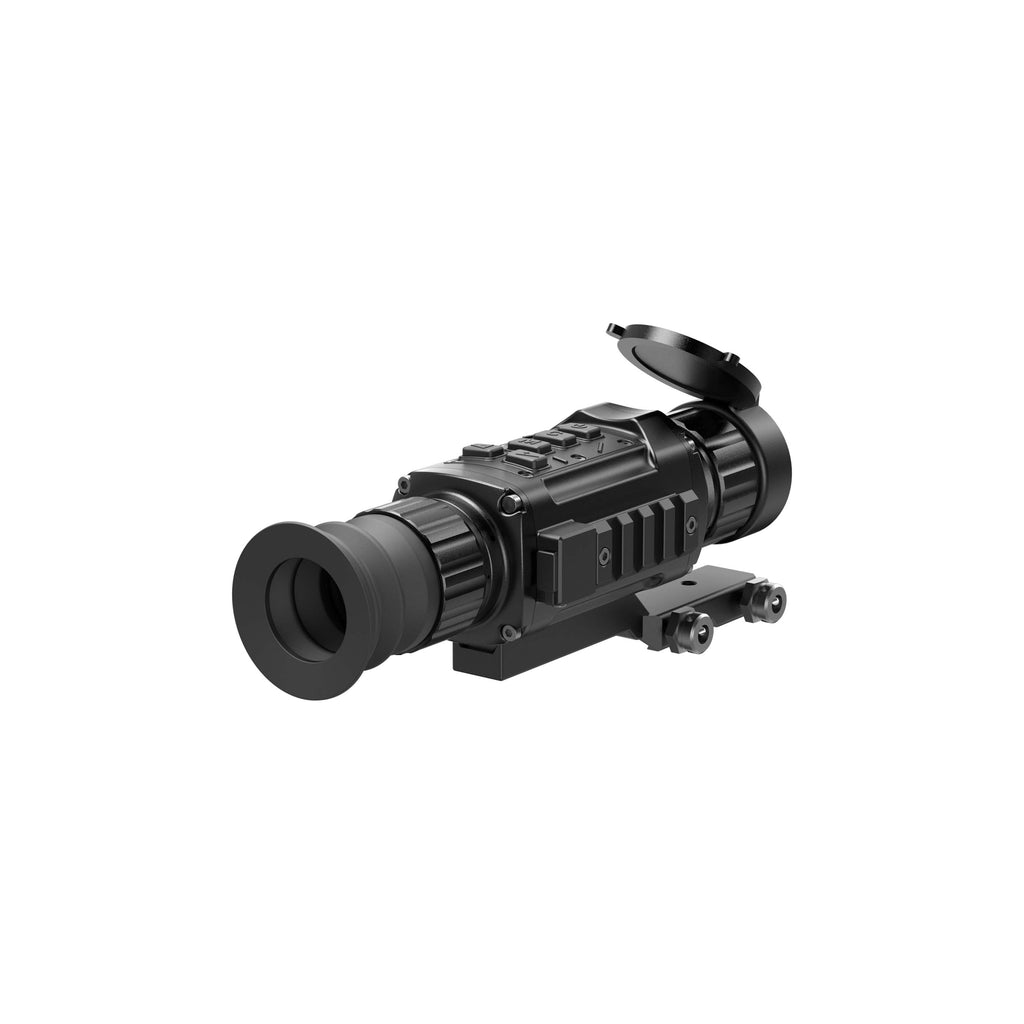

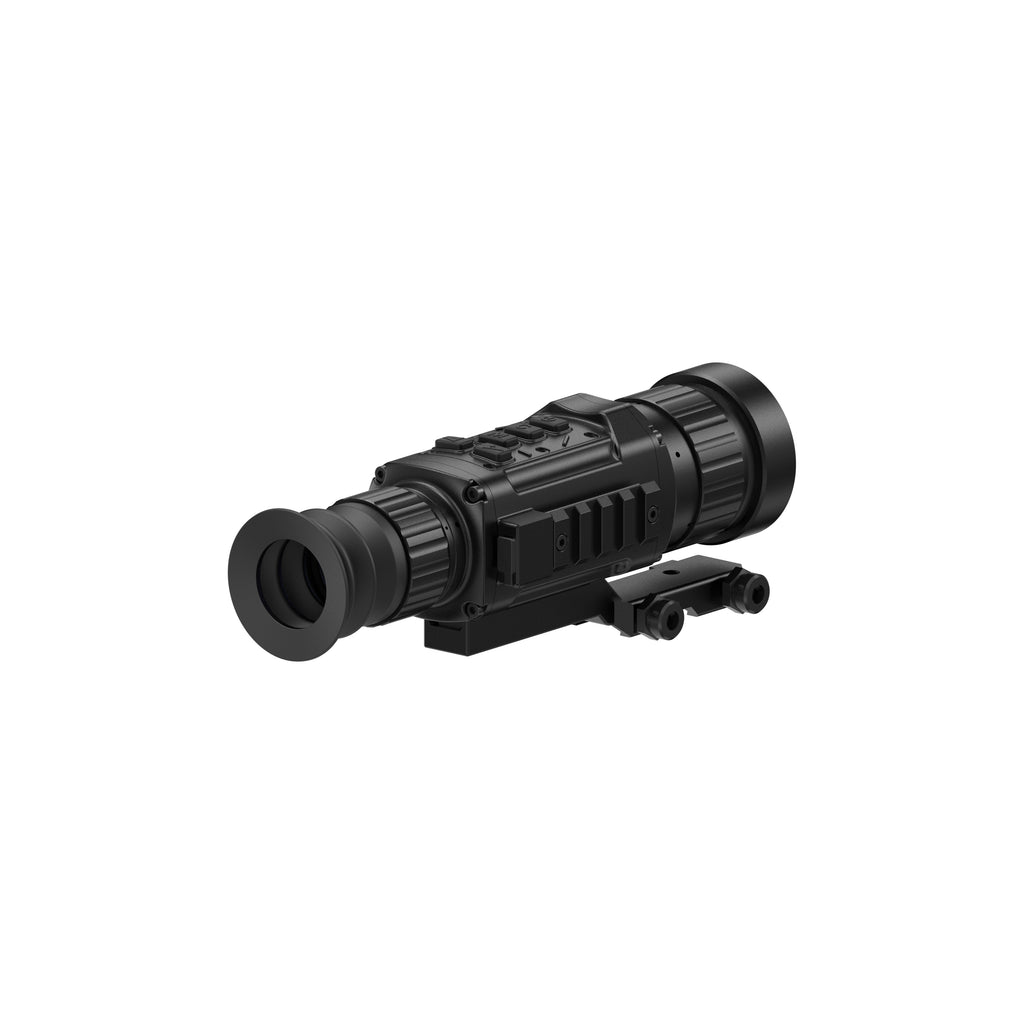

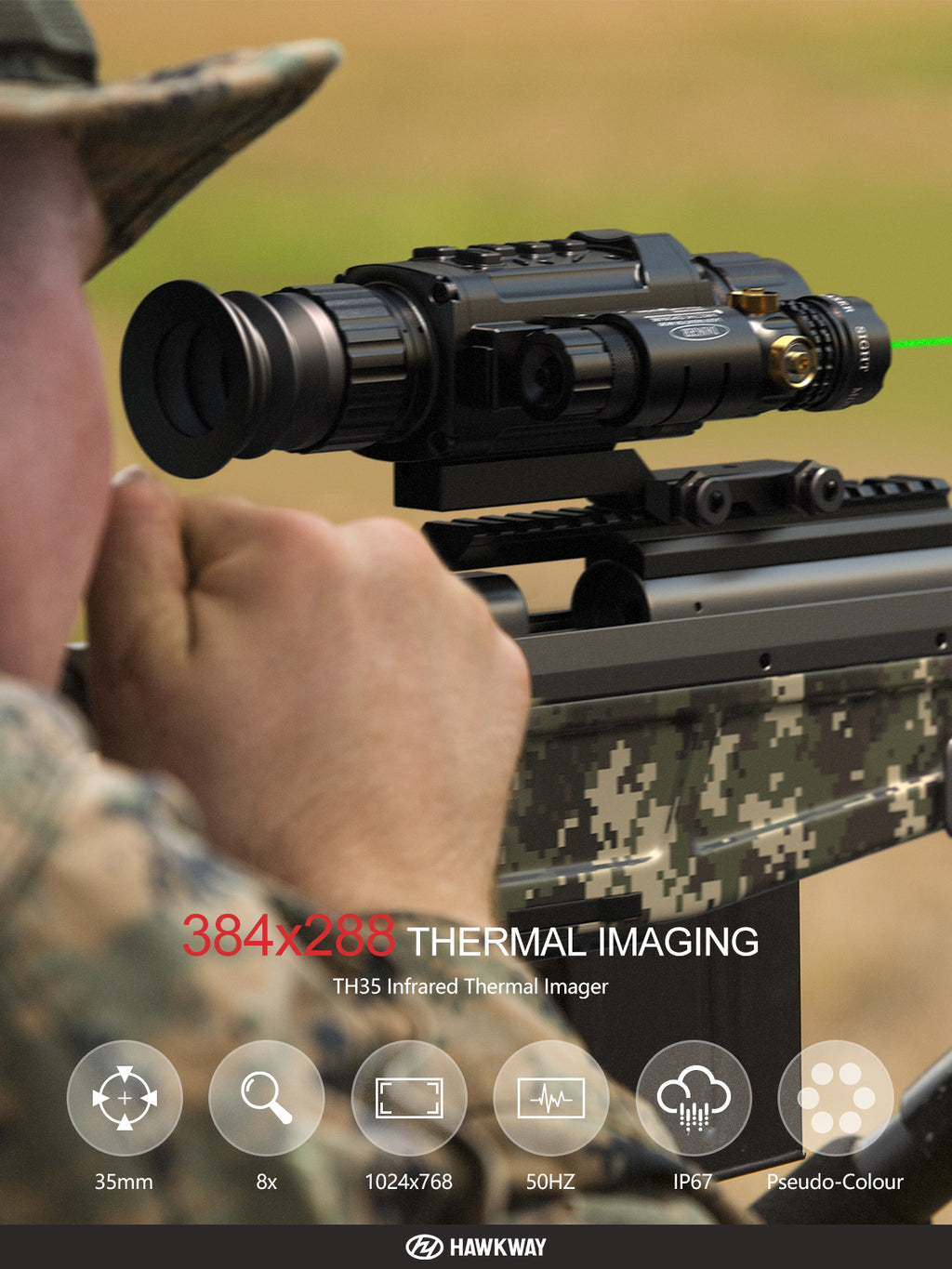

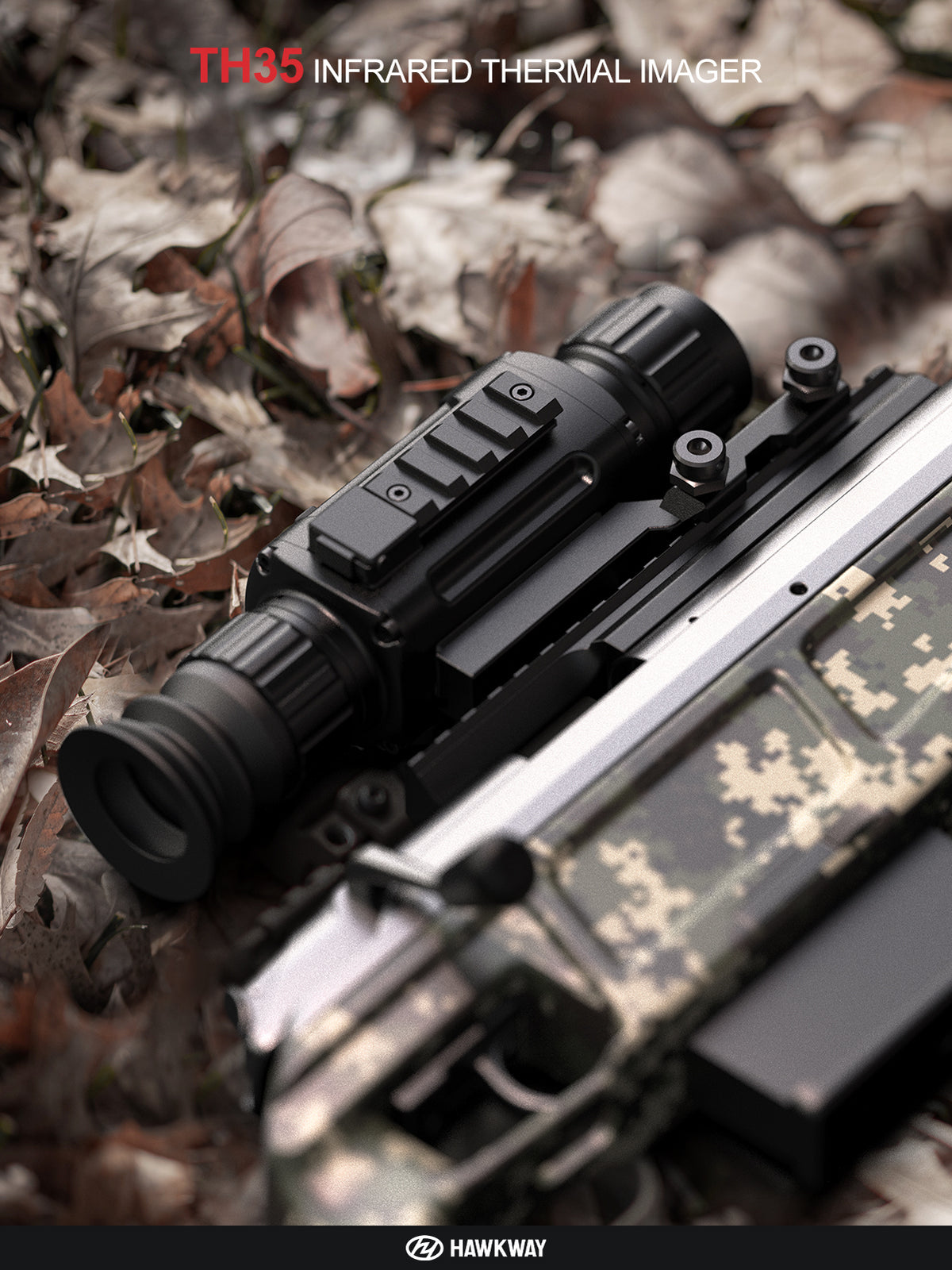

Hawkway 12um 384×288 Resolution Thermal Imaging Scopes

Resolution ratio	384x288
Types of detectors	Uncooled vanadium oxide detector
Work band	8-14um
Like a meta size	12um
NETD	＜35mk
Focal distance	25mm/35mm/50mm
F price	F 1.0
Angle of field	7.5°x5.7°（±5%）
Frame frequency	50Hz
Diopter regulation	±5D
Distance of exit pupi	48mm
Exit pupil diameter	6mm
OLED	0.39in(multi-color)
Resolution ratio	1024x768
Electronic Enlargement	x1 / x2 / x4 / x8
Pseudo-colour	White Hot, Black Hot, Red Hot, Fusion, Rainbow, Iron Red
Bad point repair	Support
Firing table	Support
Picture in picture	Support

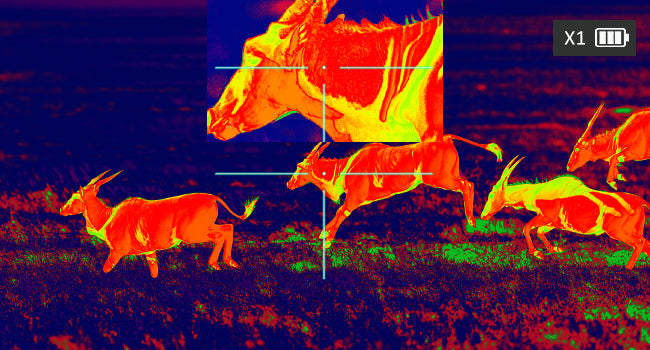

Hot tracking	Support
Image mode	Recognition, jungle
Video out	Support PAL system
Battery type	5V rechargeable lithium battery set: 1 section
Working hours	≥12h (room temperature)
Available machine time	＜10S
Language	Switching between Chinese / English
Detection range	1750m
Electrical interface	TYPE-C interface 5V / 2A
Working temperature	Temperature range -20℃～60℃
Storage temperature	Temperature range -20℃～65℃
Levels of protection	IP67
Weight (Without the battery)	＜550g
Concussion	750G/1ms
Bracket	Optional guide rail support

Contact Us

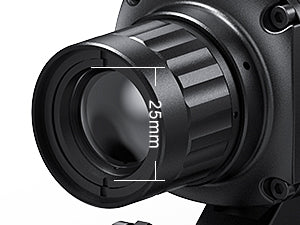

High-Performance Processor: Equipped with a 25mm/35mm/50mm Lens, This Thermal Imaging Scope Features a 12um 384x288 Resolution Uncooled Vanadium Oxide Detector The eyepiece adjustment knob enables finer target focusing, ensuring more precise and sensitive target image capture.

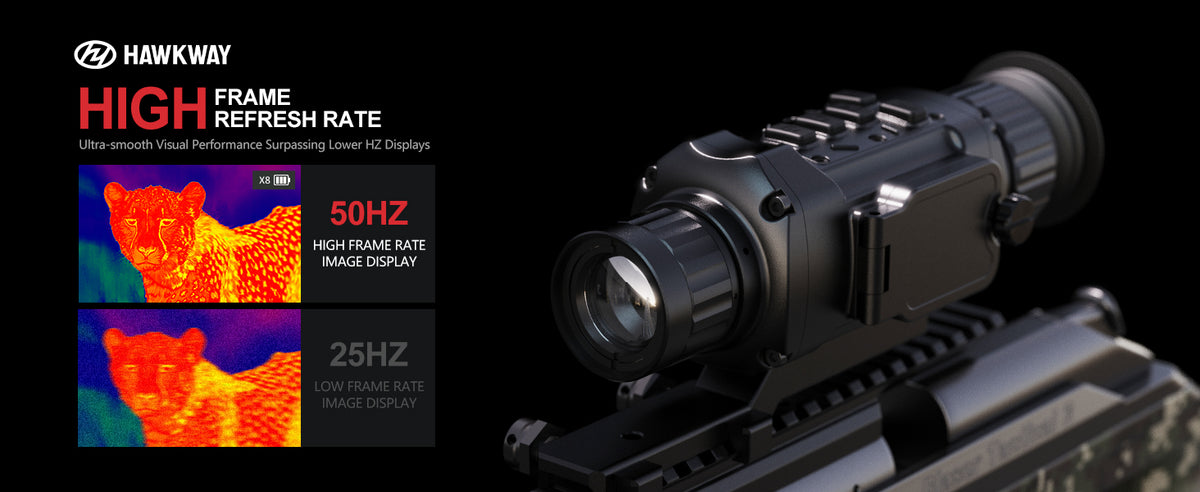

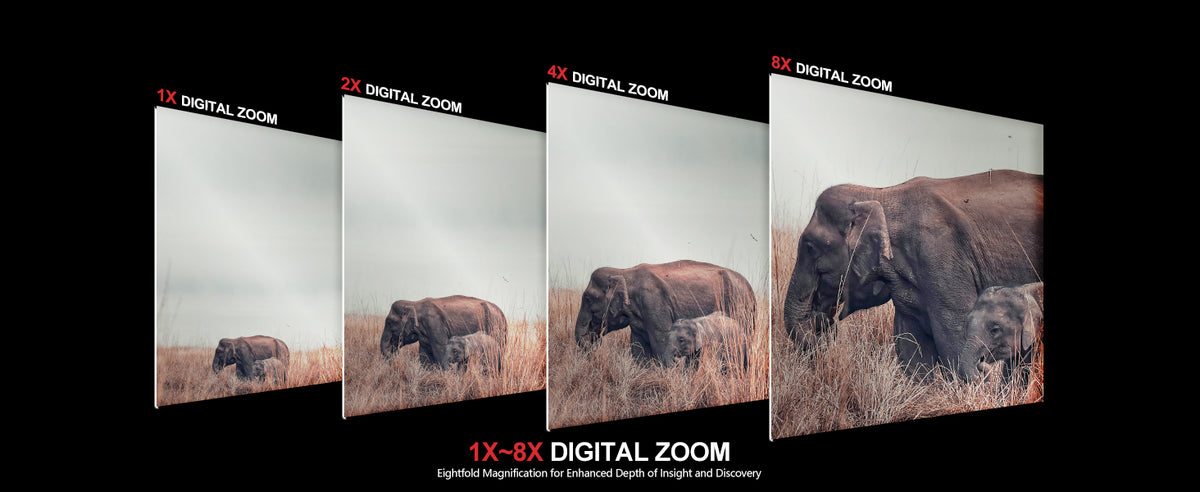

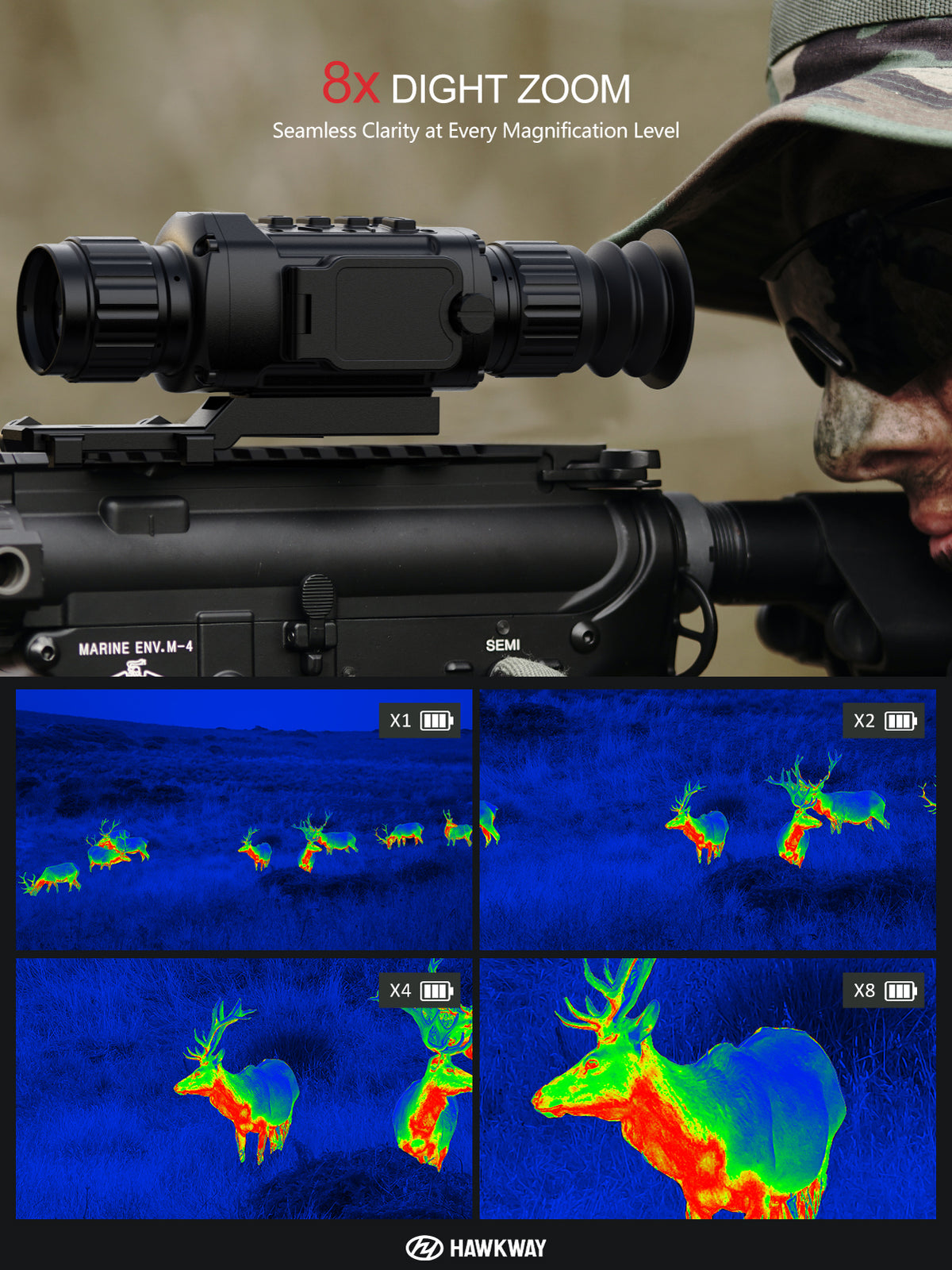

Digital Zoom Screen: The Thermal rifle scope utilizes a 1024x768 resolution OLED screen with a 50Hz refresh rate to provide clearer, smoother imaging of the footage captured by the lens and system operations. 1x/2x/4x/8x digital zoom magnification allows the maximum detection range up to 1300Yard

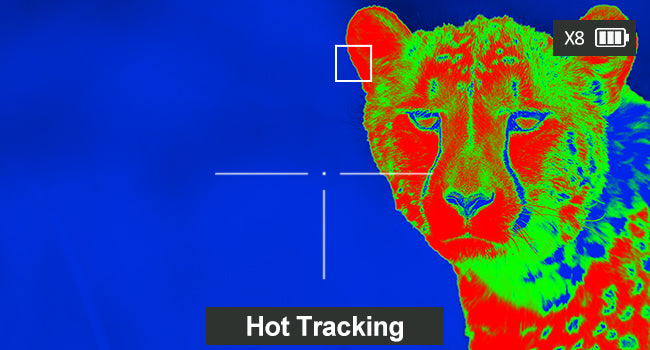

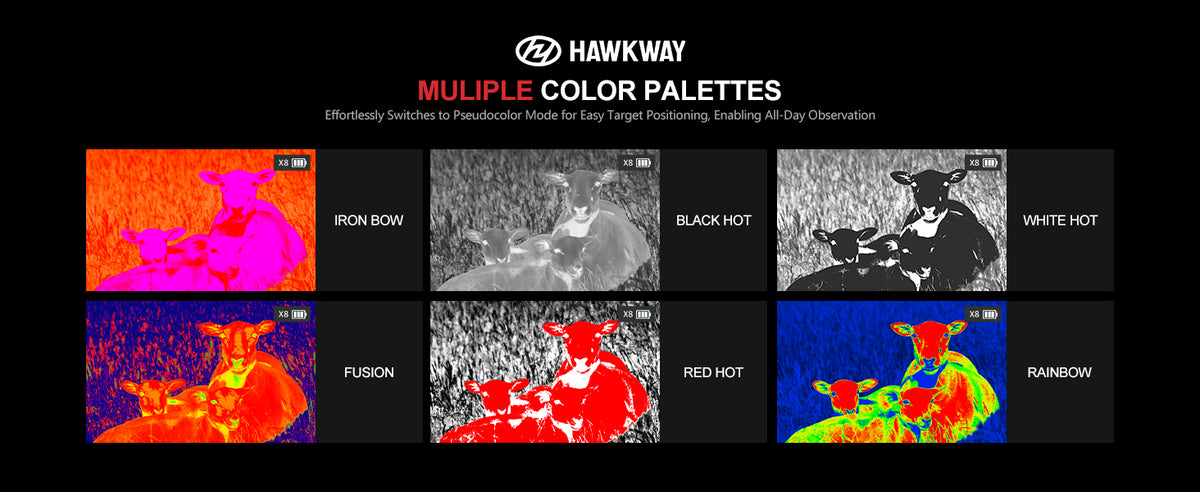

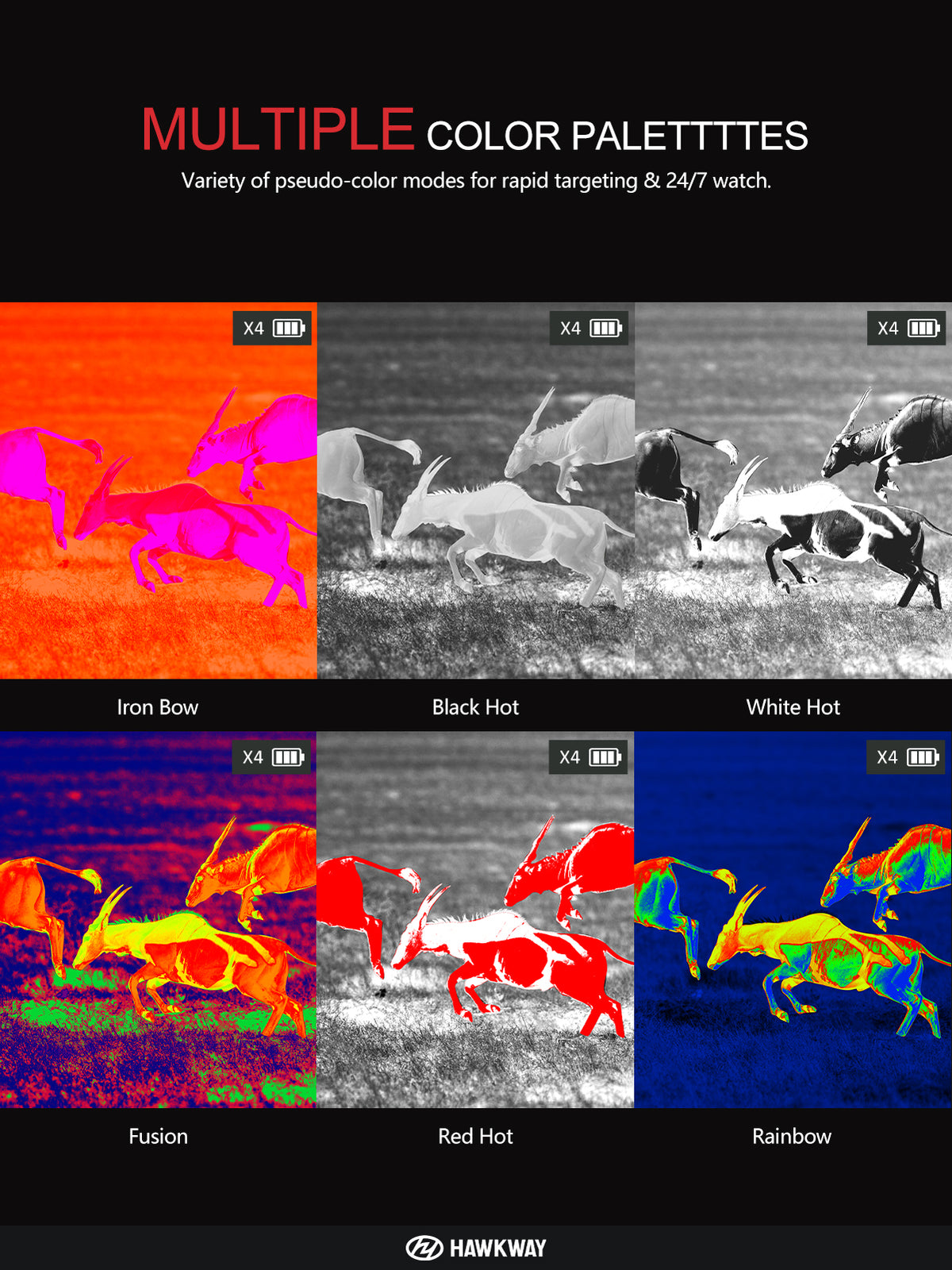

6 Observation Modes:This Thermal Scope Offers Multiple Functional Modes – Including 6 Pseudo-Color Options (White Hot, Black Hot, Fusion, Red Hot, Rainbow, Iron Bow) and Hot Tracking – to Help Users Better Observe & Track Targets, Boosting Hunting Efficiency and Accuracy

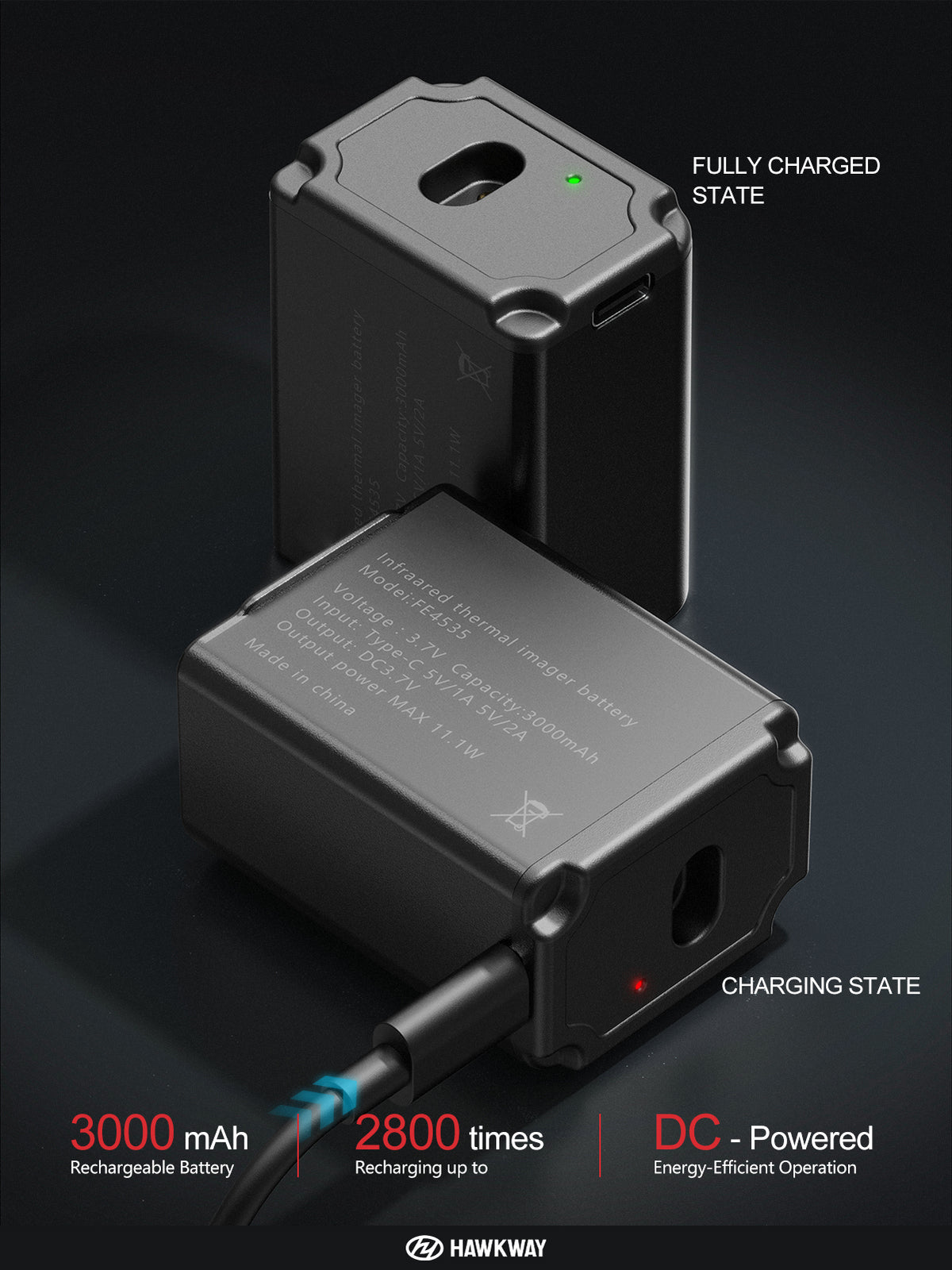

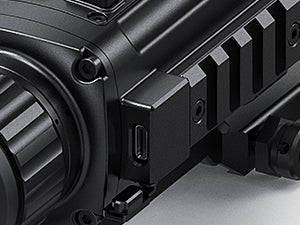

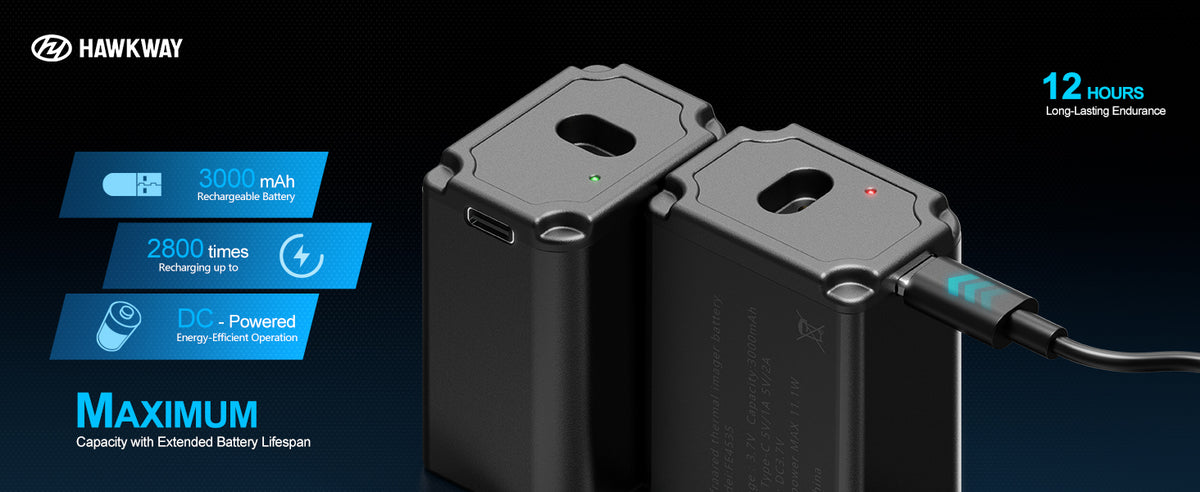

Extra-long Endurance: The rechargeable Lithium ion battery can be used for up to 12 hours in a single session, in order to prevent the battery in case of low battery or battery accident can not be used, can also be used through the other side of the type-c access to the power supply, do not have to worry about the battery life problem

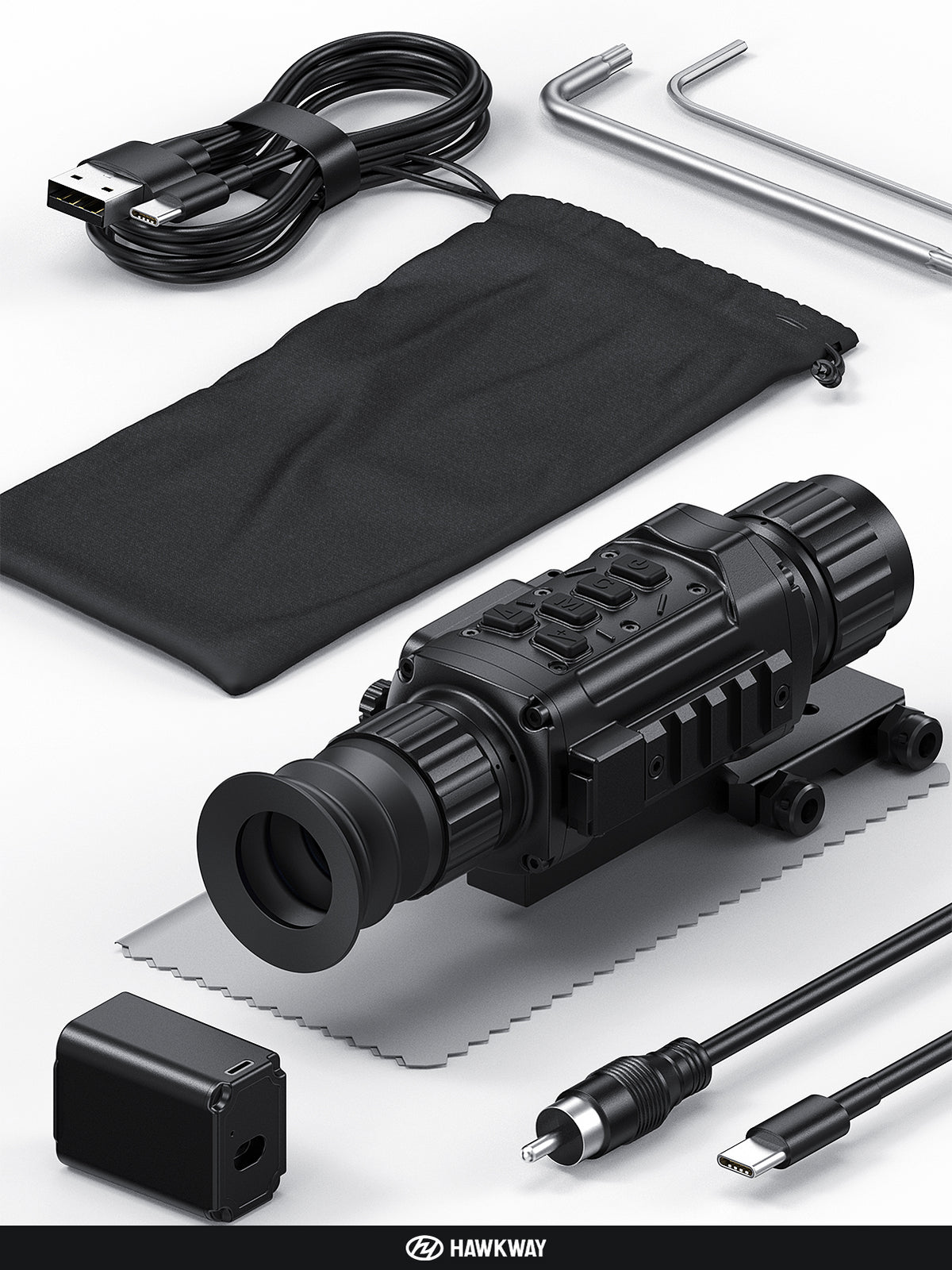

All-weather Scenarios: Thermal riflescope is quipped with a Picatinny bracket and tool for mounting on a Picatinny rail such as a rifle for use; IP67 level protection and -20℃~65℃ working temperature can make it work well in different environments such as humidity, high and low temperature.
IPX7 Water Resistance: Through a combination of seals +structural design + material selection,it withstands short-term outdoor wading and rain exposure while ensuring thermal imaging performance
1200G Reliability Stamping Test：It can withstand recoil forces of up to .50 BMG caliber/1200G, eliminating the need for frequent recalibration and allowing for worry-free use.
